製品詳細
起源の場所: 中国
ブランド名: Screate DALA
モデル番号: TL-2000
支払いと送料の条件
最小注文数量: 交渉可能
価格: negotiable
パッケージの詳細: 顧客が要求するように、標準梱包
受渡し時間: 7-15営業日
支払条件: T/Tなど
測定データ: |
しこりと首または直径 |
応用: |
円線,平面線 |
測定: |
0.02〜6mmおよび0.2〜25mm |
再現性: |
±0.03um |
正確さ: |
±0.5um |
サイズ: |
224.6*36*62mm |
動作電源: |
24VDC±5％、最大30W |
コミュニケーション: |
wifi、rs485 modbus rtu |
測定データ: |
しこりと首または直径 |
応用: |
円線,平面線 |
測定: |
0.02〜6mmおよび0.2〜25mm |
再現性: |
±0.03um |
正確さ: |
±0.5um |
サイズ: |
224.6*36*62mm |
動作電源: |
24VDC±5％、最大30W |
コミュニケーション: |
wifi、rs485 modbus rtu |

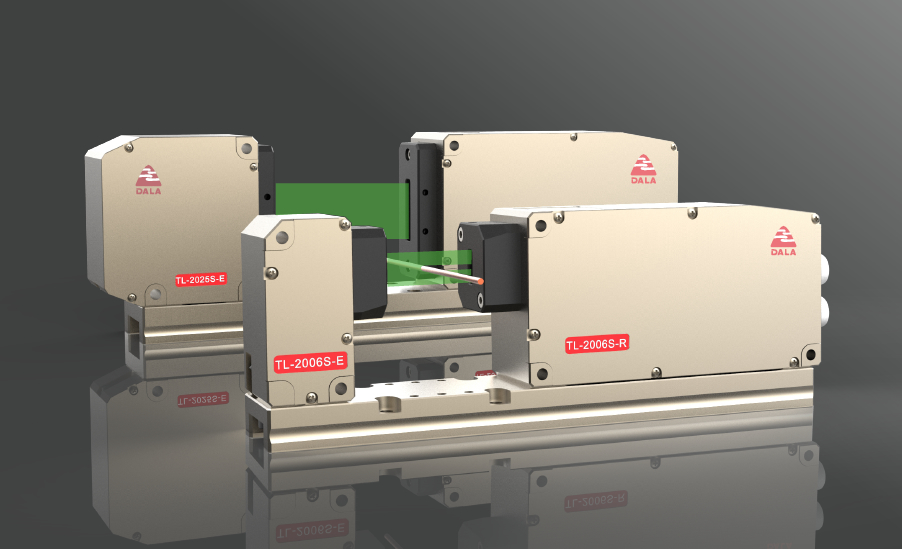

DALA TL-2025D can be managed by touch screen,computer and cellphone,like parameter setting ,measurement data management ,and so on,customers can choose as their application request.
| Model | TL-2006S | TL-2025S | |
|---|---|---|---|
| Axis | 1-axis | 1-axis | |
| Sampling frequency | 5KHz | 10KHz | |
| Measurement range | 0.02~6mm | 0.2~25mm | |
| Repeatability | ±0.03μm(1) | ±0.1μm(2) | |
| Measurement accuracy | ±0.5μm(3) | ±3μm(4) | |
| Working power | 24VDC ± 5%, Max. 30W | ||
| Application field | Round wire ,Transparent wire, Flat wire | ||
| Measurement data | Round wire, clear wire, flat wire,rod stock, tubing, etc. | ||
| Communication port | Default:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP EtherNet,etc. |
||
| Electrical port | Default:Digital output (relay), Digital input,Analog input encoder pulse input port. Option: PI feedback control(3) |
||
| Environmental adaptability |
Working Environment |
0~50 ℃ | |
| Working Environment | 20~85%RH(No condensation) | ||
| Working environmental brightness | Brightness of working environment Incandescent light, fluorescent lamp 3000lx or less | ||
| Vibrating resistance | 10~55Hz full amplitude 1.5mm in XYZ direction for 2 hours | ||
| Impact resistance | 10G/6ms | ||
| Data colletion & analysis | DMS1000 measurement software system,DS14 ZT display and control system | ||
| Out-of-tolerance alarm | Support | ||
| Transparent mode | Support | ||
| Water-proof grade | IP67 | ||
NOTE:
(1)Set average time to 0.1s and measure the ±2σvalue of the φ1mm round rod at the measurement area center;
(2)Set average time to 0.1s and measure the ±2σvalue of the φ10mm round rod at the measurement area center;
(3)Move φ1mm round rod in the measurement area of 2*2mm and conduct measurement error;
(4)Move φ9mm round rod in the measurement area of8*8mm and conduct measurement error;Move φ18mm round rod in the measurement area of4*4mm and conduct measurement error;
